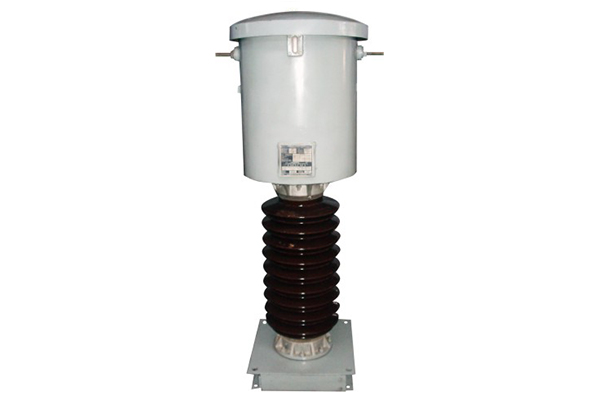

33KV Oil Filled Current Transformer
Outdoor Oil Filled Current Transformer is a Current Transformers design in which there are two tanks. This is a special kind of Current transformer and is used generally for higher system voltages upto 132 KV.
The lower tank consist of primary windings, secondary windings & core. The upper tank is used due to the Bushing limitations to withhold Graded Insulation of HV Windings. Other purpose to provide a conservator tank is for oil expansion during high temperatures.
Oil filled Current transformer is a type of instrument transformer whose function is to step down Current in an electrical system to a level measurable by various metering instruments.
Product Specification
| Core Type | Split Core Type CT |
| Phase | Three Phase |
| Material | Mild Steel |
| CT Ratio | 200/1A,300/1A,500/1A |
| Rated Voltage | 33 kV |
| Rated Power | 10/20/30 VA |
| Accuracy Class | 0.2 |
| Usage/Application | Industries |
| Frequency | 50Hz/60Hz |
| Features | Corrosion Resistance |
